Volume: 9, Issue: 3, March, 2019
DOI: 10.7324/JAPS.2019.90319



Review Article

Application of near- and mid-infrared spectroscopy combined with chemometrics for discrimination and authentication of herbal products: A review

Abdul Rohman1, Anjar Windarsih1, M A. Motalib Hossain2, Mohd Rafie Johan2, Md. Eaqub Ali2, Nurrulhidayah Ahmad Fadzilah3

  Author Affiliations


Abstract

Herbal medicines along with its preparations have been commonly used as preventive and promotive agents around the world, especially in developing countries. Motivated by economic profits, the high-priced value of herbal medicines may be substituted or adulterated with less expensive ones; therefore, the authentication methods must be developed to overcome the adulteration practices. Due to their properties as fingerprint analytical techniques, near-infrared (NIR) and mid-infrared (MIR) spectroscopies offered fast and reliable techniques for authentication of herbal medicine. The data generated during authentication of herbal medicines were complex and difficult to be interpreted; therefore, the statistical approach called chemometrics has been used to treat data. The objective of the present review was to highlight the updates on the application of NIR and MIR spectroscopies and chemometrics techniques (discrimination, classification, and quantification) for discrimination and authentication of herbal medicine.

Keywords:

Herbal medicine, authentication, NIR spectroscopy, MIR spectroscopy, chemometrics.



Citation: Rohman A, Windarsih A, Hossain MAM, Johan MR, Ali ME, Fadzilah NA. Application of near- and mid-infrared spectroscopy combined with chemometrics for discrimination and authentication of herbal products: A review. J Appl Pharm Sci, 2019; 9(03):137–147.


Copyright: The Author(s). This is an open access article distributed under the Creative Commons Attribution Non-Commercial License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

References

Baeten V, Aparicio R. Edible oils and fats authentication by Fourier transform Raman spectrometry. Rev Lit Arts Am, 2000; 4: 196–203.

Baeten V, Dardenne P. Spectroscopy: developments in instrumentation and analysis. Grasas Aceites, 2002; 53:45–63. https://doi.org/10.3989/gya.2002.v53.i1.289

Bai Y, Wang X, Lei J, Xie C, Ma Q, Zhang J, Ji Y. Discrimination of Fructus forsythiae according to geographical origin with near-infared spectroscopy. Int Conf Biomed Eng Biotechnol, 2012; 2012:175–8. https://doi.org/10.1109/iCBEB.2012.150

Barnes J. Quality, efficacy and safety of complementary medicines: fashions, facts and the future. Part 1: regulation and quality. Br J Clin Pharmacol, 2003; 55:226–33. https://doi.org/10.1046/j.1365-2125.2003.01810.x

Bodeker G, Ong CK, Grundy C, Burford G, Shein K. WHO global atlas of traditional, complementary and alternative medicine. World Health Organization Centre for Health Development, Kobe, Japan, pp 109– 16, 2005.

Bunaciu AA, Aboul-Enein HY, Hoang VD. Vibrational spectroscopy used in polymorphic analysis. TrAC Trends Anal Chem, 2015; 69:14–22. https://doi.org/10.1016/j.trac.2015.02.006

Chen CW, Yan H, Han BX. Rapid identification of three varieties of Chrysanthemum with near infrared spectroscopy. Braz J Pharmacogn, 2014; 24:33–7. https://doi.org/10.1590/0102-695X20142413387

Choong YK, Xu CH, Lan J, Chen XD, Jamal JA. Identification of geographical origin of Lignosus samples using Fourier transform infrared and two-dimensional infrared correlation spectroscopy. J Mol Struct, 2014; 1069:188–95. https://doi.org/10.1016/j.molstruc.2014.04.001

Daszykowski M, Walczak B. Use and abuse of chemometrics in chromatography. TrAC Trends Anal Chem, 2006; 25:1081–96. https://doi.org/10.1016/j.trac.2006.09.001

Duan X, Zhang D, Nie L, Zang H. Rapid discrimination of geographical origin and evaluation of antioxidant activity of Salvia miltiorrhiza var. alba by Fourier transform near infrared spectroscopy. Spectrochim Acta Part Mol Biomol Spectrosc, 2014; 122:751–7. https://doi.org/10.1016/j.saa.2013.12.003

Esslinger S, Riedl J, Fauhl-Hassek C. Potential and limitations of non-targeted fingerprinting for authentication of food in official control. Food Res Int, 2014; 60:189–204. https://doi.org/10.1016/j.foodres.2013.10.015

Fan Q, Wang Y, Sun P, Liu S, Li Y. Discrimination of Ephedra plants with diffuse reflectance FT-NIRS and multivariate analysis. Talanta, 2010; 80:1245–50. https://doi.org/10.1016/j.talanta.2009.09.018

Farhadi M, Tigabu M, Pietrzykowski M, Danusevičius D, Odén PC. Application of near infrared spectroscopy for authentication of Picea abies seed provenance. New For, 2017; 48:629–42. https://doi.org/10.1007/s11056-017-9589-1

Fu H, Fan Y, Zhang X, Lan H, Yang T, Shao M, Li S. Rapid discrimination for traditional complex herbal medicines from different parts, collection time, and origins using high-performance liquid chromatography and near-infrared spectral fingerprints with aid of pattern recognition methods. J Anal Methods Chem, 2015; 4:727589. https://doi.org/10.1155/2015/727589

Gad HA, El-Ahmady SH, Abou-Shoer MI, Al-Azizi MM. Application of chemometrics in authentication of herbal medicines: a review. Phytochem Anal, 2013; 24:1–24. https://doi.org/10.1002/pca.2378

Gemperline P. Practical Guide to Chemometrics. 1st edition, Taylor & Francis Group, Boca Raton, FL, 2006. https://doi.org/10.1201/9781420018301

Georgiev C, Damianov D, Iliev I, Todorov T, Boshnakova T. Mutsinozni kartsinomi na g'rdata s nevroendokrinna diferentsiatsiia. Khirurgiia (Sofiia), 1999; 55:22–4.

Granato D, Putnik P, Kovačević DB, Santos JS, Calado V, Rocha RS, Cruz AG, Da, Jarvis B, Rodionova OY, Pomerantsev A. Trends in chemometrics: food authentication, microbiology, and effects of processing. Compr Rev Food Sci Food Saf, 2018; 17:663–77. https://doi.org/10.1111/1541-4337.12341

Han J, Pang X, Liao B, Yao H, Song J, Chen S. An authenticity survey of herbal medicines from markets in China using DNA barcoding. Sci Rep, 2016; 6:1–9. https://doi.org/10.1038/srep18723

Heinrich M. Quality and safety of herbal medical products: regulation and the need for quality assurance along the value chains. Br J Clin Pharmacol, 2015; 80:62–6. https://doi.org/10.1111/bcp.12586

Jamrógiewicz M. Application of the near-infrared spectroscopy in the pharmaceutical technology. J Pharm Biomed Anal, 2012; 66:1–10. https://doi.org/10.1016/j.jpba.2012.03.009

Jintao X, Yongli S, Liming Y, Quanwei Y, Chunyan L, Xingyi C, Yun J. Near-infrared spectroscopy for rapid and simultaneous determination of five main active components in rhubarb of different geographical origins and processing. Spectrochim Acta Part Mol Biomol Spectrosc, 2018; 205:419–27. https://doi.org/10.1016/j.saa.2018.07.055

Joos S, Glassen K, Musselmann B. Herbal medicine in primary healthcare in Germany: the patient's perspective. Evid Based Complement Alternat Med, 2012; 2012:294638. https://doi.org/10.1155/2012/294638

Jordan SA, Cunningham DG, Marles RJ. Assessment of herbal medicinal products: challenges, and opportunities to increase the knowledge base for safety assessment. Toxicol Appl Pharmacol, 2010; 243:198–216. https://doi.org/10.1016/j.taap.2009.12.005

Kamboj A. Analytical evaluation of herbal drugs. Drug Discov Res Pharmacogn, 2012; 3:23–55. https://doi.org/10.5772/26109

Karoui R, Downey G, Blecker C. Mid-infrared spectroscopy coupled with chemometrics: a tool for the analysis of intact food systems and the exploration of their molecular structure-quality relationships—a review. Chem Rev, 2010; 110:6144–68. https://doi.org/10.1021/cr100090k

Kulkarni KM, Patil LS, Khanvilkar VV, Kada VJ. Fingerprinting techniques in herbal standardization. Indo Am J Pharm Res, 2014; 4:1049–62.

Kunle OF, Egharevba HO, Ahmadu, PO. Standardization of herbal medicines—a review. Int J Biodivers Conserv, 2012; 4:101–12. https://doi.org/10.5897/IJBC11.163

Laasonen M, Harmia-pulkkinen T, Simard CL, Michiels E. Fast identification of Echinacea purpurea dried roots using near-infrared spectroscopy. Anal Chem, 2002; 74:2493–9. https://doi.org/10.1021/ac011108f

Lai Y, Ni Y, Kokot S. Discrimination of rhizoma Corydalis from two sources by near-infrared spectroscopy supported by the wavelet transform and least-squares support vector machine methods. Vib Spectrosc, 2011; 56:154–60. https://doi.org/10.1016/j.vibspec.2011.01.007

Lang C, Costa FRC, Camargo JLC, Durgante FM, Vicentini A. Near infrared spectroscopy facilitates rapid identification of both young and mature Amazonian tree species. PLoS One, 2015; 10:1–15. https://doi.org/10.1371/journal.pone.0134521

Lasch P. Spectral pre-processing for biomedical vibrational spectroscopy and microspectroscopic imaging. Chemom Intell Lab Sys, 2012; 117:100–14. https://doi.org/10.1016/j.chemolab.2012.03.011

Lee BJ, Kim HY, Lim SR, Huang L, Choi HK. Discrimination and prediction of cultivation age and parts of Panax ginseng by Fourier-transform infrared spectroscopy combined with multivariate statistical analysis. PLoS One, 2017; 12:1–15. https://doi.org/10.1371/journal.pone.0186664

Lestari HP, Martono S, Wulandari R, Rohman A. Simultaneous analysis of Curcumin and demethoxycurcumin in Curcuma xanthorriza using FTIR spectroscopy and chemometrics. Int Food Res, 2017; 24:2097–101.

Li B, Wei Y, Duan H, Xi L, Wu X. Discrimination of the geographical origin of Codonopsis pilosula using near infrared diffuse reflection spectroscopy coupled with random forests and k-nearest neighbor methods. Vib Spectrosc, 2012; 62:17–22. https://doi.org/10.1016/j.vibspec.2012.05.001

Li N, Wang Y, Xu K. Fast discrimination of traditional Chinese medicine according to geographical origins with FTIR spectroscopy and advanced pattern recognition techniques. Opt Express, 2006; 14:7630–5. https://doi.org/10.1364/OE.14.007630

Li W, Cheng Z, Wang Y, Qu H. Quality control of Lonicerae Japonicae Flos using near infrared spectroscopy and chemometrics. J Pharm Biomed Anal, 2013; 72:33–9. https://doi.org/10.1016/j.jpba.2012.09.012

Li W, Xing L, Cai Y, Qu H. Classification and quantification analysis of Radix scutellariae from different origins with near infrared diffuse reflection spectroscopy. Vib Spectrosc, 2011; 55:58–64. https://doi.org/10.1016/j.vibspec.2010.07.004

Liang YZ, Xie P, Chan K. Quality control of herbal medicines. J Chromatogr B Analyt Technol Biomed Life Sci, 2004; 812:53–70. https://doi.org/10.1016/S1570-0232(04)00676-2

Lohumi S, Lee S, Lee H, Cho BK. A review of vibrational spectroscopic techniques for the detection of food authenticity and adulteration. Trends Food Sci Technol, 2015; 46:85–98. https://doi.org/10.1016/j.tifs.2015.08.003

Lourenço AVF, Moreira AL, Bruginski ERD, Zuccolotto T, Heiden G, Campos FR. Rapid method for the classification of Baccharis species by Fourier Transform Infrared (FT-IR) spectroscopy and chemometrics analysis. Braz Conf Nat Pro, 2015. Available via https:// ainfo.cnptia.embrapa.br/digital/bitstream/item/135754/1/Allan.pdf.

Lu J, Xiang B, Liu H, Xiang S, Xie S, Deng H. Application of two-dimensional near-infrared correlation spectroscopy to the discrimination of Chinese herbal medicine of different geographic regions. Spectrochim Acta Part Mol Biomol Spectrosc, 2008; 69:580–6. https://doi.org/10.1016/j.saa.2007.05.006

Lucio-Gutiérrez JR, Coello J, Maspoch S. Application of near infrared spectral fingerprinting and pattern recognition techniques for fast identification of Eleutherococcus senticosus. Food Res Int, 2011; 44:557–65. https://doi.org/10.1016/j.foodres.2010.11.037

Luo X, Yu X, Wu X, Cheng Y, Qu H. Rapid determination of Paeoniae Radix using near infrared spectroscopy. Microchem J, 2008; 90:8–12. https://doi.org/10.1016/j.microc.2008.02.005

Maree JE, Viljoen AM. Fourier transform near- and mid-infrared spectroscopy can distinguish between the commercially important Pelargonium sidoides and its close taxonomic ally P. reniforme. Vib Spectrosc, 2011; 55:146–52. https://doi.org/10.1016/j.vibspec.2010.10.005

Markley JL, Brüschweiler R, Edison AS, Eghbalnia HR, Powers R, Raftery D, Wishart DS. The future of NMR-based metabolomics. Curr Opin Biotechnol, 2017; 43:34–40. https://doi.org/10.1016/j.copbio.2016.08.001

Mazivila SJ, Olivieri AC. Chemometrics coupled to vibrational spectroscopy and spectroscopic imaging for the analysis of solid-phase pharmaceutical products: a brief review on non-destructive analytical methods. TrAC Trends Anal Chem, 2018; 108:74–87. https://doi.org/10.1016/j.trac.2018.08.013

Mehryar L, Esmaiili M. Honey & honey adulteration detection: a review. Int Congr Eng Food, 2011; 11:1–6.

Meng Y, Wang S, Cai R, Jiang B, Zhao W. Discrimination and content analysis of fritillaria using near infrared spectroscopy. J Anal Methods Chem, 2015; 2015:752162. https://doi.org/10.1155/2015/752162

Neal-Kababick J; Flora. Rapid authentication of botanicals for dietary supplement cGMP's compliance by automated FT-NIR using chemometric modeling. Perkin Elmer Appl, 2010; 1–4.

Nunes CA. Vibrational spectroscopy and chemometrics to assess authenticity, adulteration and intrinsic quality parameters of edible oils and fats. Food Res Int, 2014; 60:255–61. https://doi.org/10.1016/j.foodres.2013.08.041

Nunes CA, Freitas MP, Pinheiro ACM, Bastos SC. Chemoface: a novel free user-friendly interface for chemometrics. J Braz Chem Soc, 2012; 23:2003–10. https://doi.org/10.1590/S0103-50532012005000073

Qi LM, Zhang J, Liu HG, Li T, Wang YZ. Fourier transform mid-infrared spectroscopy and chemometrics to identify and discriminate Boletus edulis and Boletus tomentipes mushrooms. Int J Food Prop, 2017; 20:S56–68. https://doi.org/10.1080/10942912.2017.1289387

Rafi M, Wulansari L, Heryanto R, Darusman LK, Lim LW, Takeuchi T. Curcuminoid's content and fingerprint analysis for authentication and discrimination of Curcuma xanthorrhiza from Curcuma longa by high-performance liquid chromatography-diode array detector. Food Anal Methods, 2015; 8:2185–93. https://doi.org/10.1007/s12161-015-0110-1

Razmovski-Naumovski V, Tongkao-on W, Kimble B, Qiao VL, Beilun L, Li KM, Roufogalis B, Depo Y, Meicun Y, Li GQ. Multiple chromatographic and chemometric methods for quality standardisation of Chinese herbal medicines. World Sci Technol, 2010; 12:99–106. https://doi.org/10.1016/S1876-3553(11)60003-3

Reich G. Near-infrared spectroscopy and imaging: Basic principles and pharmaceutical applications. Adv Drug Deliv Rev, 2005; 57:1109–43. https://doi.org/10.1016/j.addr.2005.01.020

Riedl J, Esslinger S, Fauhl-Hassek C. Review of validation and reporting of non-targeted fingerprinting approaches for food authentication. Anal Chim Acta, 2015; 885:17–32. https://doi.org/10.1016/j.aca.2015.06.003

Rodionova OY, Pomerantsev AL. Chemometrics: achievements and prospects. Russ Chem Rev, 2006; 75:271–87. https://doi.org/10.1070/RC2006v075n04ABEH003599

Roggo Y, Chalus P, Maurer L, Lema-Martinez C, Edmond A, Jent N. A review of near infrared spectroscopy and chemometrics in pharmaceutical technologies. J Pharm Biomed Anal, 2007; 44:683–700. https://doi.org/10.1016/j.jpba.2007.03.023

Rohaeti E, Rafi M, Syafitri UD, Heryanto R. Fourier transform infrared spectroscopy combined with chemometrics for discrimination of Curcuma longa, Curcuma xanthorrhiza and Zingiber cassumunar. Spectrochim Acta Part Mol Biomol Spectrosc, 2015; 137:1244–9. https://doi.org/10.1016/j.saa.2014.08.139

Rohman A, Arsanti L, Erwanto Y, Pranoto Y. The use of vibrational spectroscopy and chemometrics in the analysis of pig derivatives for halal authentication. Int Food Res J, 2016; 23:1839–48.

Rohman A, Man CHE. Short communication: quantitative analysis of virgin coconut oil in cream cosmetics preparations using Fourier transform infrared (FTIR) spectroscopy. J Pharm Sci, 2009; 22:415–20.

Rohman A, Nugroho A, Lukitaningsih E, Sudjadi. Application of vibrational spectroscopy in combination with chemometrics techniques for authentication of herbal medicine. Appl Spectrosc Rev, 2014; 49:603–13. https://doi.org/10.1080/05704928.2014.882347

Savorani F, Rasmussen MA, Mikkelsen MS, Engelsen SB. A primer to nutritional metabolomics by NMR spectroscopy and chemometrics. Food Res Int, 2013; 54:1131–45. https://doi.org/10.1016/j.foodres.2012.12.025

Schmutzler M, Beganovic A, Böhler G, Huck CW. Methods for detection of pork adulteration in veal product based on FT-NIR spectroscopy for laboratory, industrial and on-site analysis. Food Control, 2015; 57:258–67. https://doi.org/10.1016/j.foodcont.2015.04.019

Sim C, Hamdan M, Ismail Z, Ahmad M. Assessment of herbal medicines by chemometrics—assisted interpretation of FTIR spectra. Anal Chim Acta, 2004; 510:1–14.

Singh I, Juneja P, Kaur B, Kumar P. Pharmaceutical applications of chemometric techniques. ISRN Anal Chem, 2013; 2013:1–13. https://doi.org/10.1155/2013/795178

Singh SK, Jha SK, Chaudhary A, Yadava RDS, Rai SB. Quality control of herbal medicines by using spectroscopic techniques and multivariate statistical analysis. Pharm Biol, 2010; 48:134–41. https://doi.org/10.3109/13880200903059388

Small GW. Chemometrics and near-infrared spectroscopy: avoiding the pitfalls. TrAC Trends Anal Chem, 2006; 25:1057–66. https://doi.org/10.1016/j.trac.2006.09.004

Sun S, Chen J, Zhou Q, Lu G, Chan K. Application of mid-infrared spectroscopy in the quality control of traditional Chinese medicines. Planta Med, 2010; 76:1987–96. https://doi.org/10.1055/s-0030-1250520

Tan HP, Ling SK, Chuah CH. One- and two-dimensional Fourier transform infrared correlation spectroscopy of Phyllagathis rotundifolia. J Mol Struct, 2011; 1006:297–302. https://doi.org/10.1016/j.molstruc.2011.09.023

Tharun G, Ramana G, Sandhya R, Shravani M. Phytochemical and pharmacological review on Echinacea. J Pharm Res, 2017; 11:249–56.

Türker-Kaya S, Huck CW. A review of mid-infrared and near-infrared imaging: principles, concepts and applications in plant tissue analysis. Molecules, 2017; 22:168. https://doi.org/10.3390/molecules22010168

Wang L, Lee FSC, Wang X. Near-infrared spectroscopy for classification of licorice (Glycyrrhizia uralensis Fisch) and prediction of the glycyrrhizic acid (GA) content. Food Sci Technol, 2007; 40:83–8. https://doi.org/10.1016/j.lwt.2005.08.011

Wang P, Yu Z. Species authentication and geographical origin discrimination of herbal medicines by near infrared spectroscopy: a review. J Pharm Anal, 2015; 5:277–84. https://doi.org/10.1016/j.jpha.2015.04.001

Wang Y, Huang HY, Zuo ZT, Wang YZ. Comprehensive quality assessment of Dendrubium officinale using ATR-FTIR spectroscopy combined with random forest and support vector machine regression. Spectrochim Acta Part Mol Biomol Spectrosc, 2018; 205:637–48. https://doi.org/10.1016/j.saa.2018.07.086

Woo YA, Kim HJ, Ze KR, Chung H. Near-infrared (NIR) spectroscopy for the non-destructive and fast determination of geographical origin of Angelicae gigantis Radix. J Pharm Biomed Anal, 2005; 36: 955–9. https://doi.org/10.1016/j.jpba.2004.08.037

Wu XM, Zuo ZT, Zhang QZ, Wang YZ. FT-MIR and UV–Vis data fusion strategy for origins discrimination of wild Paris Polyphylla Smith var. yunnanensis. Vib Spectrosc, 2018; 96:125–36. https://doi.org/10.1016/j.vibspec.2018.04.001

Yang IC, Tsai CY, Hsieh KW, Yang CW, Ouyang F, Lo YM, Chen S. Integration of SIMCA and near-infrared spectroscopy for rapid and precise identification of herbal medicines. J Food Drug Anal, 2013; 21:268–78. https://doi.org/10.1016/j.jfda.2013.07.008

Yuan T, Zhao Y, Zhang J, Wang Y. Application of variable selection in the origin discrimination of Wolfiporia cocos (F.A. Wolf) Ryvarden & Gilb. based on near infrared spectroscopy. Sci Rep, 2018; 8:1–10. https://doi.org/10.1038/s41598-017-18458-9

Zhu J, Chen B. Rapid identification of Peucedanum geographical growing areas through near infrared spectroscopy. Int Conf Biomed Eng Inform, 2011; 2011:1772–6. https://doi.org/10.1109/BMEI.2011.6098653

Zhu L, Chang H, Zhou Q, Wang Z. Improving the classification accuracy for near-infrared spectroscopy of Chinese Salvia miltiorrhiza using local variable selection. J Anal Methods Chem, 2018; 2018:1–9. https://doi.org/10.1155/2018/5237308

Zhu Y, Tan ATL. Discrimination of wild-grown and cultivated Ganoderma lucidum by Fourier transform infrared spectroscopy and chemometric methods. Am J Anal Chem, 2015; 06:480–91.

/
/
/
/
/
/
/
/
/

INTRODUCTION

Herbal medicine is the most widely used complementary and alternative medicine therapies throughout the world (Joos et al., 2012). Herb is part or whole of plants used for medicinal and therapeutic applications. Herbal medicines typically consisted of plants or plant extracts containing some active constituents, which frequently work synergistically (Folashade et al., 2012). Chemical constituents having some medicinal benefits are referred as active ingredients or active principles, such as curcuminoid present in Curcuma species. The presence and levels of active components depend on several factors, including plant species, time and season of harvesting, soil types, and other environmental conditions (Heinrich, 2015). Currently, over 80% of the world population use herbal medicines as preventive and promotive agents either in developing or developed countries (Barnes, 2003). As a consequence, the increased use of the herbal product has also driven to some actions of adulteration and abuse of the herbal products, leading to consumers and producers disappointment, and in some instances, the abuse and adulteration can cause health problems (Bodeker et al., 2005).

The discrimination and authenticity of herbal products are emerging issues (Georgiev et al., 1999), especially in countries which develop alternative medicines as primary health care such as China, India, Germany, and Indonesia (Liang et al., 2004). Herbal authentication is mainly related to improper labeling and economic adulteration. Motivated by economic profits, high-quality herbal medicines may be adulterated with lower quality herbals having less expensive price to defraud the consumer. The adulteration practice also involved the substitution, either in part or whole of expensive herbal components with cheaper and inferior herbal products. An authentic herbal product can be defined as herbal that complies with the description or labeling provided by the producers, which included plants composition, its geographic region of origin, and the variety or species of ingredients (Jordan et al., 2010).

Han et al. (2016) have reported adulteration practices in Chinese Herbal Medicines. Using DNA barcode database of traditional Chinese Medicine (TCM), 1,436 samples representing 295 medicinal species from seven primary TCM markets in China have been investigated. Of the 1,260 samples, approximately 4.2% of herbal medicines were identified to be adulterated. Some herbal components such as Ginseng Radix et Rhizoma, Radix Rubi Parvifolii, Dalbergiae odoriferae Lignum, Acori Tatarinowii Rhizoma, Inulae Flos, Lonicerae Japonicae Flos, Acanthopanacis Cortex, and Bupleuri Radix are among target of adulteration. The survey also reported that adulterants were present in the Chinese market. In order to assure the quality of labeled herbal medicines, it is essential to establish the methods to identify its authenticity either by checking the composition of herbal ingredient or monitoring batch-to-batch reproducibility (Kulkarni et al., 2014).


DISCRIMINATION AND AUTHENTICATION TESTING

Several methods have been used for identification, discrimination, and authentication of herbal ingredients, including macroscopic and microscopic evaluation, simple wet chemical tests such as color or precipitation, and application of some sophisticated instruments like spectrophotometer, real-time polymerase chain reaction, and chromatographs (especially in thin layer chromatography, gas chromatography, and high-performance liquid chromatography) (Kamboj, 2012). During last years, a new strategy for herbal medicine discrimination and authentication has been introduced by applying analysis of targeted compounds (classical approach) and non-targeted analysis by fingerprint profiling and metabolomics approach (Riedl et al., 2015). In the classical approach, authenticity testing was based on the analysis of specific marker compounds which are indicative for certain herbal products. For example, curcuminoid was determined using validated analytical method that can be used for identification of Curcuma species. The addition of Curcuma longa with other herbal materials would decrease curcuminoid content and could be used as an indicator of adulteration practice (Lestari et al., 2017). Targeted analysis has its own advantage and disadvantages. The advantages of this approach are high sensitivity, high selectivity, and simple data analysis, while its disadvantage included that high efforts are being put on the validation of the analytical method to ensure the validity of method, time-consuming, typically involving extensive sample preparation and multiple analysis, and only known compounds can be detected (Esslinger et al., 2014). Chromatographic based-methods are ideal methods for analysis of targeted compounds due to its capability to provide good separation among analytes present in herbal medicines (Daszykowski and Walczak, 2006).

In fingerprinting approaches, many compounds or features are used for authentication by investigating response profiles and then comparing the profiles between authentic and adulterated herbal medicines. Spectroscopic including near- and mid-infrared, nuclear magnetic resonance (NMR), and chromatographic methods were commonly used for profiling patterns between authentic and adulterated herbal medicines (Rafi et al., 2015). Metabolomics is described as the study of small molecules and metabolites based on comprehensive chemical analysis with the aim to detect as many substances as possible. NMR spectroscopy and chromatographic techniques combined with mass spectrometer detectors such as gas chromatography-mass spectrometry (GC-MS) and liquid chromatography-mass spectroscopy (LC-MS) were widely used for metabolomics study (Markley et al., 2017; Savorani et al., 2013). Non-targeted analyses have advantages of high-throughput approach, simple or no sample preparation, and allowing detection of unexpected additives/deviations, and they also have main disadvantage of the need of sample databases and multivariate modeling (Esslinger et al., 2014).

The fingerprint and metabolomics approaches have been applied for quality control of herbal medicines. Fingerprinting and metabolomics in herbal authentication represents the characteristic patterns of the components using certain analytical methods (Razmovski-Naumovski et al., 2010). The data generated during non-targeted approach (fingerprint profiling and metabolomics) are usually huge and complex and difficult to be interpreted; therefore, an advance statistical evaluation known as chemometrics was used (Small, 2006). Owing to its properties such as fingerprint nature which allow to make fingerprinting profile of herbal components, near-IR (NIR) and mid-IR (MIR) spectroscopies have been widely used for discrimination and authentication of herbal components (Rohman et al., 2014).


INFRARED SPECTROSCOPY

Infrared (IR) spectroscopy has been defined as the interaction between electromagnetic radiations in the infrared region with samples. This spectroscopy measures the vibrational energy levels in a compound. Each chemical bond has a unique vibrational energy level (Bunaciu et al., 2015). The IR electromagnetic radiation was divided into three regions, namely, NIR with wavenumbers range of 14,000–4,000 cm−1 (corresponding to wavelength of 800–2,500 nm), MIR at 4,000–400 cm−1 (2,500–50,000 nm), and far IR at wavenumbers of 400–50 cm−1 (50–1,000 μm). NIR and MIR spectroscopies were commonly used for confirmation (identification), qualitative and quantitative analyses of herbal medicines and pharmaceutical products, and offered an alternative to wet-chemical techniques (Lohumi et al., 2015).

NIR and MIR spectroscopies have gained popularity in identification and authentication analysis due to several advantages, namely, its rapidness with respect to fast acquisition, non-destructive analytical technique meaning that samples analyzed by IR spectroscopy can be analyzed using other instrumental technique like chromatography, low cost, ease in sample preparation with minimal sample treatment, and can be applied for analysis of liquid, semi-solid, and solid samples. The fast-growing application of IR spectroscopy was also supported by the advancement in computer and software technology, especially in chemometrics (Mazivila and Olivieri, 2018). However, IR spectroscopy also has its own disadvantages due to the nature of spectra and environment condition. The physical state of evaluated samples and the testing environment could influence IR spectra, which make the interpretation of spectra more complicated. In addition, spectra obtained are frequently complex which make the extraction of relevant information difficult. Fortunately, the statistical software known as chemometrics could facilitate these problems. IR spectroscopy and chemometrics are complementary methods and widely applied for authentication of several fields covered in pharmaceutical products, namely, drugs (Mazivila and Olivieri, 2018), cosmetics (Rohman and Man, 2009), herbal products (Rohman et al., 2014), as well as food sectors, including fats and oils (Baeten and Aparicio, 2000), honey (Mehryar and Esmaiili, 2011), and meat (Schmutzler et al., 2015).


CHEMOMETRICS

Chemometrics is defined as the application of mathematics and statistics to treat chemical data (Gemperline, 2006) and is considered as part of analytical chemistry sciences. Chemometrics can help analytical chemists to deal with all steps of analytical procedures, starting from the experimental design and optimization through extraction of chemical information and final decision (Daszykowski and Walczak, 2006). Chemical data typically include properties and values of numerous compounds as determined by instrumental methods and having various sources of variance. Accordingly, the statistical evaluation of such data should use one or more multivariate data statistics (chemometrics). Multivariate statistics allows the simultaneous analysis of several independent variables (factors) against several dependent variables or responses (Granato et al., 2018).

The most common types of chemometrics used in NIR and MIR spectroscopies for discrimination and authentication of herbal medicines include:

  • Spectral processing using derivatization (first and second derivatives), standard normal variate (SNV), multiplicative scattering correction (MSC), filtering, wavelet transformations (WT), feature selection, and folding-unfolding. The main objective for data pre-processing is improving the accuracy and robustness of subsequent classification or quantitative analyses, improving interpretability of data by transforming raw data into an understandable format, detecting and removing of outliers, and reducing the dimensionality of the data (Lasch, 2012). The first and second derivatives can eliminate baseline variations among samples analyzed significantly and enhance the small spectral differences. MSC was capable of correcting light scattering, additive, and multiplicative spectral effects. SNV is a mathematical transformation method normally applied to the log (1/R) spectra to minimize slope variation and to correct for scatter effect. WT enables infrared spectrum to be analyzed as the sum of wavelet functions with different spatial and frequency properties (Lai et al., 2011).
  • Classification and discrimination techniques, either supervised or unsupervised pattern recognition techniques. The chemometrics of linear discriminant analysis (LDA), partial least square-discriminant analysis (PLS-DA), and orthogonal projection to latent structures-discriminant analysis (OPLS-DA) are supervised, while principal component analysis (PCA), soft independent modeling of class analogy (SIMCA), cluster analysis (CA), artificial neural networks (ANN), multivariate analysis of variance, and canonical variate analysis (CVA) are considered as unsupervised pattern recognition (Rohman et al., 2016).
  • Multivariate calibrations intended to facilitate quantitative analysis of target analytes, including stepwise multiple linear regression (SMLR), principle component analysis (PCR), PLS, and modified PLS (Singh et al., 2013).

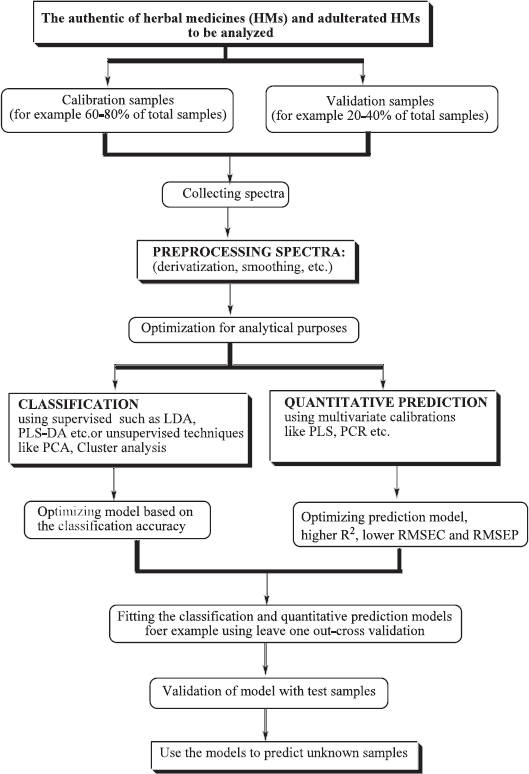

Figure 1 exhibited the scheme of general steps during the application of chemometrics methods to treat NIR and MIR spectra data to assess the discrimination and authentication of herbal medicine products, including spectral treatment, classification, and quantification (Nunes, 2014).

Currently, there are a number of user-friendly chemometrics software packages which are free or commercially available to carry out statistical calculations of complex data. Each software has its own advantages and features. Unscrambler®, SIMCA® SIRIUS®, and Pirouette® offered standard methods of multivariate statistical analysis, such as classification with PCA and SIMCA and multivariate calibration with PCR, PLS, and SMLR, but there is a few capacity for writing personal programs. On the other hand, Minitab® and Matlab® are routinely designed to facilitate the writing of personal programs, while Grams® 32 is particularly useful for calibration modeling during quantitative analysis rather than for the exploration of a data matrix and classification by different pattern recognition techniques (Gad et al., 2013; Rodionova and Pomerantsev, 2006). Currently, Chemoface, a user-friendly and free interface software is used for chemometrics analysis (Nunes et al., 2012).


AUTHENTICATION OF HERBAL MEDICINE USING NEAR INFRARED SPECTROSCOPY

Near-infrared (NIR) spectroscopy is a fast and non-destructive analytical technique which provides chemical and physical information of samples (Roggo et al., 2007). The combination of NIR spectroscopy and multivariate data analysis offered many interesting perspectives either qualitative or quantitative analyses, which shows the authentication of herbal medicines (Reich, 2005). The American Society of Testing and Materials has defined NIR spectroscopy as the interaction between samples and electromagnetic radiation in the NIR region, corresponding to the wavelength of 780–2,526 nm, located between visible light and MIR region (Wang and Yu, 2015). The most prominent peaks of NIR absorption originated from the overtones and combinations of the fundamental vibrations appeared in MIR peaks related to functional groups containing hydrogen bonds such as –O–H, –S–H, –C–H, and –N–H (Jamrógiewicz, 2012). Table 1 shows the application of NIR spectroscopy for authentication of herbal medicines.

Discrimination and spectral fingerprinting of Wolfiporia cocos (F.A. Wolf) Ryvarden & Gilb, one of the traditional Chinese medicine, have been performed with NIR spectroscopy and PCA. The identification and discrimination of W. cocos based on its geographical origin are one of the acceptance prerequisites for its worldwide recognition because the therapeutic effect of W. cocos depends on its chemical components. The active compounds contained in W. cocos revealed difference due to geographical origins. Hence, authentication based on geographical origins was very essential. The powder of samples was subjected to NIR spectrophotometer at wavenumbers 10,000–4,000 cm−1 using 64 scanning and resolution of 4 cm−1. NIR spectra of W. cocos were pre-treated with Norris, mean centering, standardization, and the second derivative, successively. After optimizing spectral treatment, the wavenumbers of 7,501.74–4,088.35 cm−1 were finally used for discrimination and classification. PCA using these wavenumbers could discriminate W. cocos between poriae cutis and the inner part of the sclerotia of W. cocos in the pattern space of PCA (Yuan et al., 2018).

Figure 1. The general steps involved in the application of chemometrics methods to treat near- and mid-infrared spectra data to assess the authentication of herbal medicine products [adapted from Gad et al. (2013)].

[Click here to view]

Authentication of Picea abies L. Karst seed from five seed lots in Sweden, Finland, Poland, and Lithuania has been carried out using NIR reflectance spectra at a wavelength of 780–2,500 nm using a resolution of 0.5 nm (Farhadi et al., 2017). Classification model of samples was performed using OPLS-DA. The model performance was validated using two test sets, namely, internal validation using 600 seeds and external validation using 1,158 seeds. In internal validation, the same seed lots were included during modeling, while in external validation, seed lots were excluded. OPLS-DA model could correctly classify 99% of Swedish, Finnish, and Polish seeds and 97% of Lithuanian seeds in internal validation, while during external validation, OPLS-DA model could correctly classify of Swedish, Finnish, Lithuanian, and Polish seeds with accuracy levels of 81%, 96%, 98%, and 93% of seeds according to their respective classes, respectively. The mean classification accuracy was 99% and 95% for the internal and external test set, respectively.

Table 1. The application of NIR spectroscopy for authentication of herbal medicines.

[Click here to view]

Echinacea is one of the most popular herbals commonly used in dietary supplements and has an expensive price in the market, with immune-stimulatory and anti-inflammatory properties, especially the alleviation of cold symptoms (Tharun et al., 2017); therefore, the authentication of this plant is very essential. Several parts of this plant are used in the manufacturing of dietary supplement products, and NIR spectroscopy was used for identification of plant parts to comply with current good manufacturing practices (cGMPs). The differentiation of Echinacea angustifolia root, E. purpurea root, E. purpurea tops, and E. purpurea seed from various sources and E. pallida root from a single source, as well as adulterated E. angustifolia root were performed using NIR spectroscopy in combination with SIMCA (Neal-Kababick and Flora, 2010). Powdered samples (40 mesh) were placed in scintillation vials and scanned using reflectance NIR at wavenumbers of 12,000–4,000 cm−1 using 25 scanning at a resolution of 8 cm−1. NIR spectra were subjected to data processing of noise weighting, MSC normalization, and spectral derivatization before being analyzed using SIMCA algorithm. SIMCA model was able to properly identify authentic and adulterated Echinacea materials. SIMCA using variables of absorbances on NIR spectra was also successfully used for classification of 48 herbal samples commonly used in food and pharmaceutical industries (Yang et al., 2013).

NIR spectroscopy combined with chemometrics of PLS-DA has been used for fast identification of three varieties of Chrysanthemum, namely, Dabaiju, Huju, and Xiaobaiju (Chen et al., 2014). A total of 139 Chrysanthemum samples were analyzed and divided randomly into a calibration set (92 samples) and prediction set (47 samples). NIR diffuse reflectance spectra of Chrysanthemum varieties were preprocessed using a first-order derivative (D1) and auto-scaling and then subjected to PLS-DA. Using absorbance values at wavenumbers of 10,000–4,000 cm−1, PLS-DA could differentiate three Chrysanthemum varieties with accuracy rates of Dabaiju, Huju, and Xiaobaiju were of 97.60%, 96.65%, and 94.70%, respectively, in calibration sets and 95.16%, 86.11%, and 93.46% in validation (prediction) sets, respectively.

A rapid NIR spectroscopy coupled with multivariate calibration of PLS was used to discriminate Paeoniae Radix (dried root of Paeonia lactiflora Pallas, Family of Paeonaceae) in cultivation area of Hangshao, Boshao, and Chuanshao from different geographical origins in China. The different levels of active components (Paeoniflorin, albiflorin, and benzoylalbiflorin) contained in Paeoniae Radix as determined by HPLC-UV detection contribute to such discrimination. NIR spectra of samples were acquired at 10,000–4,000 cm−1 using 32 scanning at a resolution of 16 cm−1 and recorded as absorbance, using air as the background. The diffuse reflectance NIR spectra were subjected to several treatments, including MSC, first derivative, and Savitsky–Golay for correcting the scattering effect and eliminating the baseline shift to offer good correlation between results obtained with NIR spectroscopy and those obtained using HPLC-UV. The chemometrics of PCA can successfully classify Paeoniae Radix according to different cultivation area using the contents of paeoniflorin, albiflorin, and benzoylalbiflorin as variables (Luo et al., 2008).


AUTHENTICATION OF HERBAL MEDICINES USING MIR SPECTROSCOPY

Among infrared regions, MIR spectroscopy was the most commonly used technique for analytical purposes due to its fingerprint properties. The interaction between electromagnetic radiation in MIR regions with molecules can be analyzed in three different ways as emission, absorption, and reflection (Türker-Kaya and Huck, 2017). This interaction causes chemical bonds to vibrate at specific wavenumbers (frequencies), which depends on the mass of the constituent atoms, the molecule shape, and the stiffness of the bonds, according to Hooke’s law (Baeten and Dardenne, 2002). The MIR region lies at wavenumbers of 4,000–400 cm−1, which can be segmented into four regions, namely, 4,000–2,500 cm−1 (X-H stretching vibration), 2,500–2,000 cm−1 (the triple bond region), 2,000–1,500 cm−1 (the double bond region), and 1,500–400 cm−1 (the fingerprint region) (Karoui et al., 2010). The main advantages of MIR spectroscopy employed for discrimination and authentication of herbal medicines are found on sample preparations. Herbal medicines samples can be rapidly and directly tested to obtain a MIR spectrum because they are not separated or extracted and the procedure of sample preparation is nondestructive. The MIR spectrum fingerprint also contains the “whole” chemical information of all chemical compositions present in the herbal medicines (Sun et al., 2010). Table 2 listed the application of MIR spectroscopy in combination with chemometrics for authentication of herbal medicines.

Fourier Transform (FT) MIR Spectroscopy in combination with chemometrics has been developed as a rapid tool for classification of Baccharis species samples from the Atlantic Forest. For this purpose, 28 specimens were collected from different locations in Brazil. The samples were analyzed using FT-MIR spectrometer, using reflectance drift module at 4,000–400 cm−1, 64 scans with a resolution of 4 cm−1. MIR spectra data were subjected to pre-processing by normalization and auto-scaling. PCA was successfully used for the classification of samples into five groups, namely, B. articulata, B. trimera, B. uncinella, B. organensis, and B. aracatubaensis (Lourenço et al., 2015). FT-MIR spectroscopy combined with PCA using variables of absorbance values at fingerprint regions (2,000–400 cm−1) was also successfully used for classification of five herbal medicines from different locations in India, namely, Arjuna (Terminalia arjuna), Aswagandha (Withania somnifera), Aawala (Emblic myrobalan), Vaasa (Adhatoda vasica), and Tulsi (Ocimum sanctum) (Singh et al., 2010).

Panax ginseng C.A. Meyer, one of the popular herbs commonly used for medicinal purposes, has been discriminated using FT-MIR spectroscopy combined with chemometrics of PCA and PLS-DA based on cultivation age (5 and 6 years) and parts (rhizome, tap root, and lateral root), while Partial least square regression (PLSR) was used to predict the ages and parts of ginseng samples based on PLS components numbers. Each FT-MIR spectrum of samples was collected in wavenumbers of 4,000–650 cm−1 with a resolution of 4 cm−1. FT-MIR spectra were pre-processed differently using various normalization methods, including area normalization, minimum–maximum normalization, and vector normalization. Cross-validation using leave-one-out technique was used to minimize model overfitting and give the predictive capability of classification models. PLS-DA could discriminate ginseng into three parts (taproot, rhizome, and lateral root) and classify ginseng with 5- and 6-year cultivation ages. PLSR using two PLS components could predict the ages and parts of ginseng with a low root mean square error of prediction (RMSEP) value of 0.161 (Lee et al., 2017).

Two-dimensional (2D) correlation MIR spectroscopy (the measurement of MIR spectral changes due to time course) has been used for the authentication of Lignosus spp., medicinal mushroom used as a folk remedy, especially for clearing heat and moistening the lungs. Lignosus rhinocerotis, the most common species of Lignosus, was differentiated from different origins in Malaysia. The 2D-MIR spectra at the combined wavenumbers of 1,800–1,300 cm−1, 1,300–900 cm−1, and 900–400 cm−1 could be applied for differentiation of Lignosus rhinocerotis from different origins (Choong et al., 2014). 2D-MIR spectroscopy in combination with PCA using variables of absorbance values at 1,000–1,500 cm−1 could be successfully applied for differentiation of Phyllagathis praetermissa from P. rotundifolia (Tan et al., 2011).

FT-MIR spectroscopy in combination with multivariate analysis of PCA and CVA has been devoted for discrimination of Curcuma longa (turmeric), Curcuma xanthorrhiza (java turmeric), and Zingiber cassumunar (ginger) from different regions. The rhizomes of these plants had similar rhizome color and were used widely in herbal medicines. FTIR spectra in the MIR region (4,000–400 cm−1) were subjected to SNV and first and second derivatives. PCA using variable of absorbances values at wavenumbers of 2,000–400 cm−1 could be used for making the patterns of samples, groupings, similarities, and differences. These wavenumbers were preferred due to their capability to provide valuable information, which attributed to the chemical compounds present in the studied samples. Using the same variables, CVA gave better discrimination than PCA. Subsequently, the developed method could be used for the identification and discrimination of the three closely-related plant species (Rohaeti et al., 2015).

Table 2. The application of MIR spectroscopy in combination with chemometrics for authentication of herbal medicines*.

[Click here to view]

The quality of herbal medicines depends on the harvesting period and cultivated areas (geographical origins). FT-MIR using attenuated total reflectance (ATR) has been used for classification of Dendrobium officinale, a tonic herb commonly used in Traditional Chinese Medicine. MIR spectra at wavenumbers of 4,000–550 cm−1 were used as variables during classification modeling. Random forest model could classify D. officinale from different harvesting periods with accuracy levels of 94.44% and 97.92% in calibration and validation set (Wang et al., 2018), respectively.


CONCLUSION

NIR and MIR spectroscopies are fingerprint analytical techniques commonly used for discrimination and authentication of herbal medicines. Coupled with chemometrics of pattern recognitions, NIR and MIR spectra could be treated to be more easily interpreted for making a decision regarding the adulteration practices. The combination of NIR-MIR spectra and chemometrics offered rapid and powerful techniques for discrimination and authentication of herbal medicines.


ACKNOWLEDGMENTS

We would like to thank the Ministry of Research and Higher Education, Republic of Indonesia, for financial support during the preparation of this review through Program of World Class University, 2018, awarded to Prof. Dr. Abdul Rohman.


REFERENCES

Baeten V, Aparicio R. Edible oils and fats authentication by Fourier transform Raman spectrometry. Rev Lit Arts Am, 2000; 4: 196–203.

Baeten V, Dardenne P. Spectroscopy: developments in instrumentation and analysis. Grasas Aceites, 2002; 53:45–63. CrossRef

Bai Y, Wang X, Lei J, Xie C, Ma Q, Zhang J, Ji Y. Discrimination of Fructus forsythiae according to geographical origin with near-infared spectroscopy. Int Conf Biomed Eng Biotechnol, 2012; 2012:175–8. CrossRef

Barnes J. Quality, efficacy and safety of complementary medicines: fashions, facts and the future. Part 1: regulation and quality. Br J Clin Pharmacol, 2003; 55:226–33. CrossRef

Bodeker G, Ong CK, Grundy C, Burford G, Shein K. WHO global atlas of traditional, complementary and alternative medicine. World Health Organization Centre for Health Development, Kobe, Japan, pp 109–16, 2005.

Bunaciu AA, Aboul-Enein HY, Hoang VD. Vibrational spectroscopy used in polymorphic analysis. TrAC Trends Anal Chem, 2015; 69:14–22. CrossRef

Chen CW, Yan H, Han BX. Rapid identification of three varieties of Chrysanthemum with near infrared spectroscopy. Braz J Pharmacogn, 2014; 24:33–7. CrossRef

Choong YK, Xu CH, Lan J, Chen XD, Jamal JA. Identification of geographical origin of Lignosus samples using Fourier transform infrared and two-dimensional infrared correlation spectroscopy. J Mol Struct, 2014; 1069:188–95. CrossRef

Daszykowski M, Walczak B. Use and abuse of chemometrics in chromatography. TrAC Trends Anal Chem, 2006; 25:1081–96. CrossRef

Duan X, Zhang D, Nie L, Zang H. Rapid discrimination of geographical origin and evaluation of antioxidant activity of Salvia miltiorrhiza var. alba by Fourier transform near infrared spectroscopy. Spectrochim Acta Part Mol Biomol Spectrosc, 2014; 122:751–7. CrossRef

Esslinger S, Riedl J, Fauhl-Hassek C. Potential and limitations of non-targeted fingerprinting for authentication of food in official control. Food Res Int, 2014; 60:189–204. CrossRef

Fan Q, Wang Y, Sun P, Liu S, Li Y. Discrimination of Ephedra plants with diffuse reflectance FT-NIRS and multivariate analysis. Talanta, 2010; 80:1245–50. CrossRef

Farhadi M, Tigabu M, Pietrzykowski M, Danusevičius D, Odén PC. Application of near infrared spectroscopy for authentication of Picea abies seed provenance. New For, 2017; 48:629–42. CrossRef

Fu H, Fan Y, Zhang X, Lan H, Yang T, Shao M, Li S. Rapid discrimination for traditional complex herbal medicines from different parts, collection time, and origins using high-performance liquid chromatography and near-infrared spectral fingerprints with aid of pattern recognition methods. J Anal Methods Chem, 2015; 4:727589. CrossRef

Gad HA, El-Ahmady SH, Abou-Shoer MI, Al-Azizi MM. Application of chemometrics in authentication of herbal medicines: a review. Phytochem Anal, 2013; 24:1–24. CrossRef

Gemperline P. Practical Guide to Chemometrics. 1st edition, Taylor & Francis Group, Boca Raton, FL, 2006. CrossRef

Georgiev C, Damianov D, Iliev I, Todorov T, Boshnakova T. Mutsinozni kartsinomi na g’rdata s nevroendokrinna diferentsiatsiia. Khirurgiia (Sofiia), 1999; 55:22–4.

Granato D, Putnik P, Kovačević DB, Santos JS, Calado V, Rocha RS, Cruz AG, Da, Jarvis B, Rodionova OY, Pomerantsev A. Trends in chemometrics: food authentication, microbiology, and effects of processing. Compr Rev Food Sci Food Saf, 2018; 17:663–77. CrossRef

Han J, Pang X, Liao B, Yao H, Song J, Chen S. An authenticity survey of herbal medicines from markets in China using DNA barcoding. Sci Rep, 2016; 6:1–9. CrossRef

Heinrich M. Quality and safety of herbal medical products: regulation and the need for quality assurance along the value chains. Br J Clin Pharmacol, 2015; 80:62–6. CrossRef

Jamrógiewicz M. Application of the near-infrared spectroscopy in the pharmaceutical technology. J Pharm Biomed Anal, 2012; 66:1–10. CrossRef

Jintao X, Yongli S, Liming Y, Quanwei Y, Chunyan L, Xingyi C, Yun J. Near-infrared spectroscopy for rapid and simultaneous determination of five main active components in rhubarb of different geographical origins and processing. Spectrochim Acta Part Mol Biomol Spectrosc, 2018; 205:419–27. CrossRef

Joos S, Glassen K, Musselmann B. Herbal medicine in primary healthcare in Germany: the patient’s perspective. Evid Based Complement Alternat Med, 2012; 2012:294638. CrossRef

Jordan SA, Cunningham DG, Marles RJ. Assessment of herbal medicinal products: challenges, and opportunities to increase the knowledge base for safety assessment. Toxicol Appl Pharmacol, 2010; 243:198–216. CrossRef

Kamboj A. Analytical evaluation of herbal drugs. Drug Discov Res Pharmacogn, 2012; 3:23–55. CrossRef

Karoui R, Downey G, Blecker C. Mid-infrared spectroscopy coupled with chemometrics: a tool for the analysis of intact food systems and the exploration of their molecular structure-quality relationships—a review. Chem Rev, 2010; 110:6144–68. CrossRef

Kulkarni KM, Patil LS, Khanvilkar VV, Kada VJ. Fingerprinting techniques in herbal standardization. Indo Am J Pharm Res, 2014; 4:1049–62.

Kunle OF, Egharevba HO, Ahmadu, PO. Standardization of herbal medicines—a review. Int J Biodivers Conserv, 2012; 4:101–12. CrossRef

Laasonen M, Harmia-pulkkinen T, Simard CL, Michiels E. Fast identification of Echinacea purpurea dried roots using near-infrared spectroscopy. Anal Chem, 2002; 74:2493–9. CrossRef

Lai Y, Ni Y, Kokot S. Discrimination of rhizoma Corydalis from two sources by near-infrared spectroscopy supported by the wavelet transform and least-squares support vector machine methods. Vib Spectrosc, 2011; 56:154–60. CrossRef

Lang C, Costa FRC, Camargo JLC, Durgante FM, Vicentini A. Near infrared spectroscopy facilitates rapid identification of both young and mature Amazonian tree species. PLoS One, 2015; 10:1–15. CrossRef

Lasch P. Spectral pre-processing for biomedical vibrational spectroscopy and microspectroscopic imaging. Chemom Intell Lab Sys, 2012; 117:100–14. CrossRef

Lee BJ, Kim HY, Lim SR, Huang L, Choi HK. Discrimination and prediction of cultivation age and parts of Panax ginseng by Fourier-transform infrared spectroscopy combined with multivariate statistical analysis. PLoS One, 2017; 12:1–15. CrossRef

Lestari HP, Martono S, Wulandari R, Rohman A. Simultaneous analysis of Curcumin and demethoxycurcumin in Curcuma xanthorriza using FTIR spectroscopy and chemometrics. Int Food Res, 2017; 24:2097–101.

Li B, Wei Y, Duan H, Xi L, Wu X. Discrimination of the geographical origin of Codonopsis pilosula using near infrared diffuse reflection spectroscopy coupled with random forests and k-nearest neighbor methods. Vib Spectrosc, 2012; 62:17–22. CrossRef

Li N, Wang Y, Xu K. Fast discrimination of traditional Chinese medicine according to geographical origins with FTIR spectroscopy and advanced pattern recognition techniques. Opt Express, 2006; 14:7630–5. CrossRef

Li W, Cheng Z, Wang Y, Qu H. Quality control of Lonicerae Japonicae Flos using near infrared spectroscopy and chemometrics. J Pharm Biomed Anal, 2013; 72:33–9. CrossRef

Li W, Xing L, Cai Y, Qu H. Classification and quantification analysis of Radix scutellariae from different origins with near infrared diffuse reflection spectroscopy. Vib Spectrosc, 2011; 55:58–64. CrossRef

Liang YZ, Xie P, Chan K. Quality control of herbal medicines. J Chromatogr B Analyt Technol Biomed Life Sci, 2004; 812:53–70. CrossRef

Lohumi S, Lee S, Lee H, Cho BK. A review of vibrational spectroscopic techniques for the detection of food authenticity and adulteration. Trends Food Sci Technol, 2015; 46:85–98. CrossRef

Lourenço AVF, Moreira AL, Bruginski ERD, Zuccolotto T, Heiden G, Campos FR. Rapid method for the classification of Baccharis species by Fourier Transform Infrared (FT-IR) spectroscopy and chemometrics analysis. Braz Conf Nat Pro, 2015. Available via https://ainfo.cnptia.embrapa.br/digital/bitstream/item/135754/1/Allan.pdf.

Lu J, Xiang B, Liu H, Xiang S, Xie S, Deng H. Application of two-dimensional near-infrared correlation spectroscopy to the discrimination of Chinese herbal medicine of different geographic regions. Spectrochim Acta Part Mol Biomol Spectrosc, 2008; 69:580–6. CrossRef

Lucio-Gutiérrez JR, Coello J, Maspoch S. Application of near infrared spectral fingerprinting and pattern recognition techniques for fast identification of Eleutherococcus senticosus. Food Res Int, 2011; 44:557–65. CrossRef

Luo X, Yu X, Wu X, Cheng Y, Qu H. Rapid determination of Paeoniae Radix using near infrared spectroscopy. Microchem J, 2008; 90:8–12. CrossRef

Maree JE, Viljoen AM. Fourier transform near- and mid-infrared spectroscopy can distinguish between the commercially important Pelargonium sidoides and its close taxonomic ally P. reniforme. Vib Spectrosc, 2011; 55:146–52. CrossRef

Markley JL, Brüschweiler R, Edison AS, Eghbalnia HR, Powers R, Raftery D, Wishart DS. The future of NMR-based metabolomics. Curr Opin Biotechnol, 2017; 43:34–40. CrossRef

Mazivila SJ, Olivieri AC. Chemometrics coupled to vibrational spectroscopy and spectroscopic imaging for the analysis of solid-phase pharmaceutical products: a brief review on non-destructive analytical methods. TrAC Trends Anal Chem, 2018; 108:74–87. CrossRef

Mehryar L, Esmaiili M. Honey & honey adulteration detection: a review. Int Congr Eng Food, 2011; 11:1–6.

Meng Y, Wang S, Cai R, Jiang B, Zhao W. Discrimination and content analysis of fritillaria using near infrared spectroscopy. J Anal Methods Chem, 2015; 2015:752162. CrossRef

Neal-Kababick J; Flora. Rapid authentication of botanicals for dietary supplement cGMP’s compliance by automated FT-NIR using chemometric modeling. Perkin Elmer Appl, 2010; 1–4.

Nunes CA. Vibrational spectroscopy and chemometrics to assess authenticity, adulteration and intrinsic quality parameters of edible oils and fats. Food Res Int, 2014; 60:255–61. CrossRef

Nunes CA, Freitas MP, Pinheiro ACM, Bastos SC. Chemoface: a novel free user-friendly interface for chemometrics. J Braz Chem Soc, 2012; 23:2003–10. CrossRef

Qi LM, Zhang J, Liu HG, Li T, Wang YZ. Fourier transform mid-infrared spectroscopy and chemometrics to identify and discriminate Boletus edulis and Boletus tomentipes mushrooms. Int J Food Prop, 2017; 20:S56–68. CrossRef

Rafi M, Wulansari L, Heryanto R, Darusman LK, Lim LW, Takeuchi T. Curcuminoid’s content and fingerprint analysis for authentication and discrimination of Curcuma xanthorrhiza from Curcuma longa by high-performance liquid chromatography-diode array detector. Food Anal Methods, 2015; 8:2185–93. CrossRef

Razmovski-Naumovski V, Tongkao-on W, Kimble B, Qiao VL, Beilun L, Li KM, Roufogalis B, Depo Y, Meicun Y, Li GQ. Multiple chromatographic and chemometric methods for quality standardisation of Chinese herbal medicines. World Sci Technol, 2010; 12:99–106. CrossRef

Reich G. Near-infrared spectroscopy and imaging: Basic principles and pharmaceutical applications. Adv Drug Deliv Rev, 2005; 57:1109–43. CrossRef

Riedl J, Esslinger S, Fauhl-Hassek C. Review of validation and reporting of non-targeted fingerprinting approaches for food authentication. Anal Chim Acta, 2015; 885:17–32. CrossRef

Rodionova OY, Pomerantsev AL. Chemometrics: achievements and prospects. Russ Chem Rev, 2006; 75:271–87. CrossRef

Roggo Y, Chalus P, Maurer L, Lema-Martinez C, Edmond A, Jent N. A review of near infrared spectroscopy and chemometrics in pharmaceutical technologies. J Pharm Biomed Anal, 2007; 44:683–700. CrossRef

Rohaeti E, Rafi M, Syafitri UD, Heryanto R. Fourier transform infrared spectroscopy combined with chemometrics for discrimination of Curcuma longa, Curcuma xanthorrhiza and Zingiber cassumunar. Spectrochim Acta Part Mol Biomol Spectrosc, 2015; 137:1244–9. CrossRef

Rohman A, Arsanti L, Erwanto Y, Pranoto Y. The use of vibrational spectroscopy and chemometrics in the analysis of pig derivatives for halal authentication. Int Food Res J, 2016; 23:1839–48.

Rohman A, Man CHE. Short communication: quantitative analysis of virgin coconut oil in cream cosmetics preparations using Fourier transform infrared (FTIR) spectroscopy. J Pharm Sci, 2009; 22:415–20.

Rohman A, Nugroho A, Lukitaningsih E, Sudjadi. Application of vibrational spectroscopy in combination with chemometrics techniques for authentication of herbal medicine. Appl Spectrosc Rev, 2014; 49:603–13. CrossRef

Savorani F, Rasmussen MA, Mikkelsen MS, Engelsen SB. A primer to nutritional metabolomics by NMR spectroscopy and chemometrics. Food Res Int, 2013; 54:1131–45. CrossRef

Schmutzler M, Beganovic A, Böhler G, Huck CW. Methods for detection of pork adulteration in veal product based on FT-NIR spectroscopy for laboratory, industrial and on-site analysis. Food Control, 2015; 57:258–67. CrossRef

Sim C, Hamdan M, Ismail Z, Ahmad M. Assessment of herbal medicines by chemometrics—assisted interpretation of FTIR spectra. Anal Chim Acta, 2004; 510:1–14.

Singh I, Juneja P, Kaur B, Kumar P. Pharmaceutical applications of chemometric techniques. ISRN Anal Chem, 2013; 2013:1–13. CrossRef

Singh SK, Jha SK, Chaudhary A, Yadava RDS, Rai SB. Quality control of herbal medicines by using spectroscopic techniques and multivariate statistical analysis. Pharm Biol, 2010; 48:134–41. CrossRef

Small GW. Chemometrics and near-infrared spectroscopy: avoiding the pitfalls. TrAC Trends Anal Chem, 2006; 25:1057–66. CrossRef

Sun S, Chen J, Zhou Q, Lu G, Chan K. Application of mid-infrared spectroscopy in the quality control of traditional Chinese medicines. Planta Med, 2010; 76:1987–96. CrossRef

Tan HP, Ling SK, Chuah CH. One- and two-dimensional Fourier transform infrared correlation spectroscopy of Phyllagathis rotundifolia. J Mol Struct, 2011; 1006:297–302. CrossRef

Tharun G, Ramana G, Sandhya R, Shravani M. Phytochemical and pharmacological review on Echinacea. J Pharm Res, 2017; 11:249–56.

Türker-Kaya S, Huck CW. A review of mid-infrared and near-infrared imaging: principles, concepts and applications in plant tissue analysis. Molecules, 2017; 22:168. CrossRef

Wang L, Lee FSC, Wang X. Near-infrared spectroscopy for classification of licorice (Glycyrrhizia uralensis Fisch) and prediction of the glycyrrhizic acid (GA) content. Food Sci Technol, 2007; 40:83–8. CrossRef

Wang P, Yu Z. Species authentication and geographical origin discrimination of herbal medicines by near infrared spectroscopy: a review. J Pharm Anal, 2015; 5:277–84. CrossRef

Wang Y, Huang HY, Zuo ZT, Wang YZ. Comprehensive quality assessment of Dendrubium officinale using ATR-FTIR spectroscopy combined with random forest and support vector machine regression. Spectrochim Acta Part Mol Biomol Spectrosc, 2018; 205:637–48. CrossRef

Woo YA, Kim HJ, Ze KR, Chung H. Near-infrared (NIR) spectroscopy for the non-destructive and fast determination of geographical origin of Angelicae gigantis Radix. J Pharm Biomed Anal, 2005; 36: 955–9. CrossRef

Wu XM, Zuo ZT, Zhang QZ, Wang YZ. FT-MIR and UV–Vis data fusion strategy for origins discrimination of wild Paris Polyphylla Smith var. yunnanensis. Vib Spectrosc, 2018; 96:125–36. CrossRef

Yang IC, Tsai CY, Hsieh KW, Yang CW, Ouyang F, Lo YM, Chen S. Integration of SIMCA and near-infrared spectroscopy for rapid and precise identification of herbal medicines. J Food Drug Anal, 2013; 21:268–78. CrossRef

Yuan T, Zhao Y, Zhang J, Wang Y. Application of variable selection in the origin discrimination of Wolfiporia cocos (F.A. Wolf) Ryvarden & Gilb. based on near infrared spectroscopy. Sci Rep, 2018; 8:1–10. CrossRef

Zhu J, Chen B. Rapid identification of Peucedanum geographical growing areas through near infrared spectroscopy. Int Conf Biomed Eng Inform, 2011; 2011:1772–6. CrossRef

Zhu L, Chang H, Zhou Q, Wang Z. Improving the classification accuracy for near-infrared spectroscopy of Chinese Salvia miltiorrhiza using local variable selection. J Anal Methods Chem, 2018; 2018:1–9. CrossRef

Zhu Y, Tan ATL. Discrimination of wild-grown and cultivated Ganoderma lucidum by Fourier transform infrared spectroscopy and chemometric methods. Am J Anal Chem, 2015; 06:480–91.

Article Metrics
